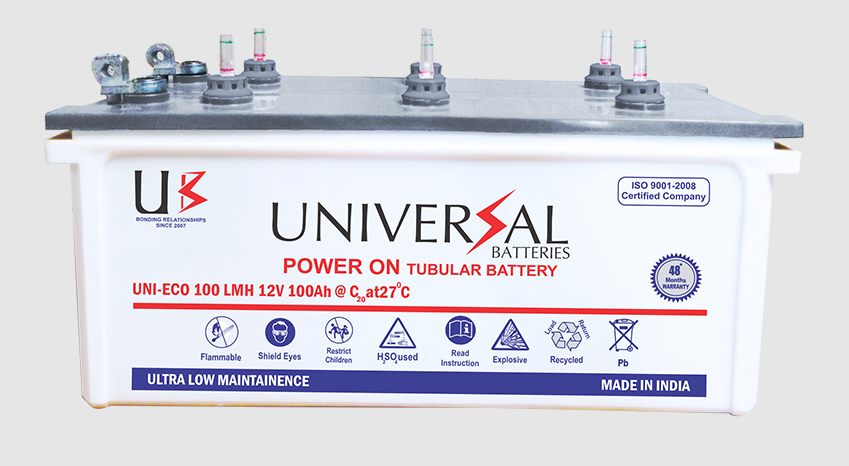

Solar Tubular Batteries


It is accepted, that Sun is the ultimate source of all energy. In Universal battery manufacturing units we manufacture solar batteries from lower end to higher end. Advanced science and technology has been implemented in solar batteries designed and manufactured. The solar energy is trapped inside the solar panels and stored as the electrical energy that can be reused for several appliances at crucial times.

PRODUCT FEATURES
  • Batteries are designed to withstand frequent and long power cuts
  • Assembled in polypropylene containers with plate holding cradles
  • Extra thick tubular plates
  • Thick tubular plate spines are of low antimony alloy for super fine grain structure and minimized grid corrosion at high temperatures
  • Negative plates are of low antimony alloy
  • Micro porous ceramic vent cum sealed float plugs to reduce topping up frequency
  • Resistance to corrosion and high ambient temperature
  • Low self discharge
  • Deep cycle design

Technical Specification Of Solar Tubular Battery C10 Capacity

Sl.No. Type C10 Capacity Nominal Weight Battery Weight Overall Dimension (Max) Approx Acid Quality Constant Charge Rate (Amps)
        Dry Wet L W H   Initial Normal
1 UBT 30 LM 25 12 9.3 15.5 260 173 235 4.8 1.25 2.5
2 UBT 40 LM 40 12 13.5 22 306 173 235 6 2 4
3 UBT 50 LM 50 12 14.5 22.5 306 173 235 6 2.5 5
4 UBT 60 LM 60 12 20 30.5 410 175 250 8.5 3 6
5 UBT 80 LM 75 12 21.5 30 410 175 250 7.2 3.5 7.5
6 UBT100 LMD 100 12 29 43.5 515 273 260 12 5 10
7 UBT 125 LM 125 12 34 49 515 273 260 11 6.25 12.5
8 UBT 150 LM 150 12 39 56.5 515 273 260 15.6 7.5 15
