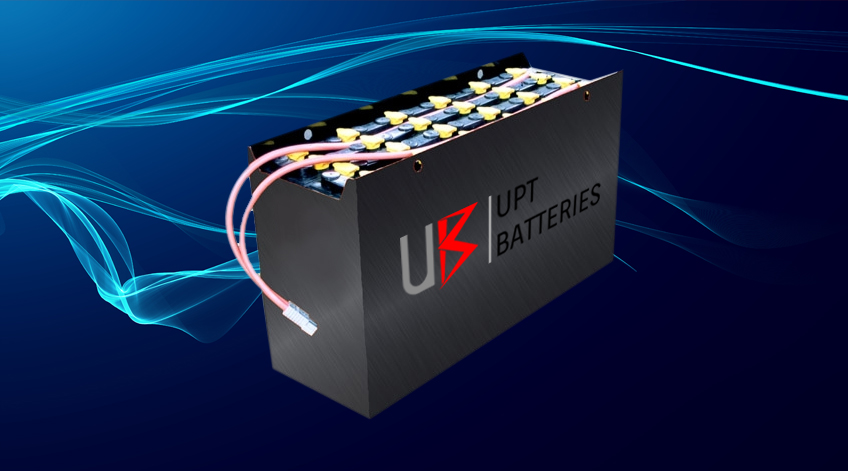

Traction Battery


Tubular Traction lead acid batteries are designed to provide reliable long lasting motive power. The use of Top quality parts and components and their perfect match with one another is the precondition for reliability and outstanding life expectancy in a traction battery.

They are specifically designed for use in materials handling equipment, Pallet Trucks and Platform Trucks. These cells are manufactured to the IS 5154-1 (2013), making them suitable for all types, and makes of materials handling equipment.

FEATURES
  • Uses a unique terminal with a tight connection between lead and plastic preventing downward migration of electrolyte
  • The Plates are protected with imported polyethylene enveloping system to ensure good acid circulation and reduce separator movement in operation
  • High Grade, permanently elastic woven gauntlets reduce loss of material
  • Contains unique corrosion resistant lead alloys, a significant feature best suited for high ambient temperature applications

30 Ah Plate Type

Sl.No. Battery AH Length In mm ± 3mm Width In mm ± 3mm Height (up to vent plug) In mm ± 3mm
        Dry
1 180 Ah & 210 Ah 158 125 300
2 210 Ah & 240 Ah 158 141 300

40 Ah Plate Type

Sl.No. Battery AH Length In mm ± 3mm Width In mm ± 3mm Height (up to vent plug) In mm ± 3mm
        Dry
1 240 Ah & 280 Ah 158 125 370
2 280 Ah & 320 Ah 158 141 370

50 Ah Plate Type

Sl.No. Battery AH Length In mm ± 3mm Width In mm ± 3mm Height (up to vent plug) In mm ± 3mm
        Dry
1 300 Ah & 350 Ah 158 125 420
2 350 Ah & 400 Ah 158 141 420

55 Ah Plate Type

Sl.No. Battery AH Length In mm ± 3mm Width In mm ± 3mm Height (up to vent plug) In mm ± 3mm
        Dry
1 330 Ah & 385 Ah 158 125 450
2 385 Ah & 440 Ah 158 141 450
