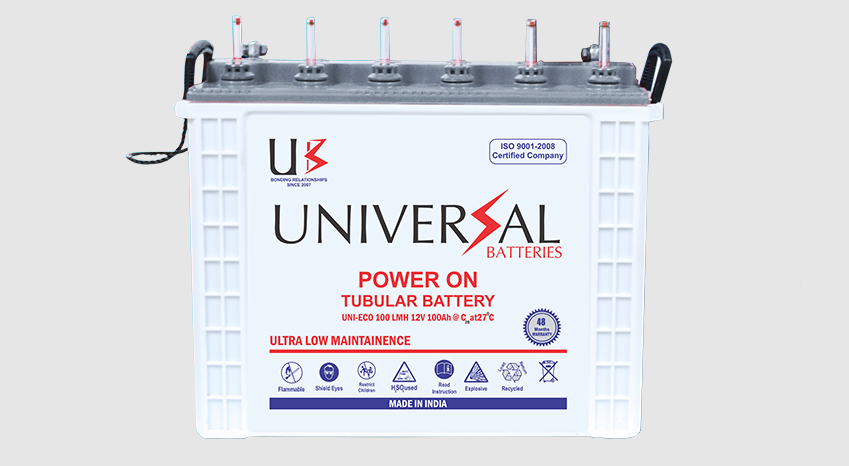

Tall Tubular Batteries


Universal tubular batteries are robust and proven tubular plate technology batteries, ideal for use in all standby, deep cycling and shallow cycling applications that require high levels of reliability. They are designed and manufactured according to relevant standards.

Tubular Batteries are assembled with tubular positive and pasted negative plates made of a special alloy. They are provided with transparent sealed float indicators and Micro Porous Aqua Trap vent plugs, which allow generated gases to escape and traps water particles, returning the major portion to the electrolyte. This reduces the frequency of topping up. With extra electrolyte head and proper voltage control, the frequency of topping up will be once a year. For the available series of Tubular Batteries please refer the types.

PRODUCT FEATURES
  • Batteries are designed to withstand frequent and long power cuts
  • Assembled in polypropylene containers with plate holding cradles
  • Extra thick tubular plates
  • Thick tubular plate spines are of low antimony alloy for super fine grain structure and minimized grid corrosion at high temperatures
  • Negative plates are of low antimony alloy
  • Micro porous ceramic vent cum sealed float plugs to reduce topping up frequency
  • Resistance to corrosion and high ambient temperature
  • Low self discharge
  • Deep cycle design

Technical Specification Of Tall Tubular Battery C10 Capacity

Cell Type Normal Voltage Capacity in AH at 27 C in 10 Hrs Rate Dimension Wt. (K.gs) (approx) Electrolyte Qty in Ltrs Per cell (approx) Charging Current(A)
Lengthn(mm) Width (mm) Height (mm) With out Electrolyte (approx) With Electrolyte(approx) Initial Normal Equalizing
UBT 80 LMH 12 80 510±5 195±5 410±5 30 48 16 4 8 2.4
UBT 100 LMH 12 100 510±5 195±5 410 ±5 33 55 18 5 10 3
UBT 120 LMH 12 120 510±5 195±5 410±5 37 59 18 6 12 3.6
UBT 135 LMH 12 135 510±5 195±5 410±5 41 62 19 7 13.5 4
UBT 150 LMH 12 150 510±5 195±5 410±5 43 65 20 7.5 15 4.5
UBT 180 LMH 12 180 510±5 195±5 410±5 46 69 20 9 18 5.4
UBT 200 LMH 12 200 510±5 195±5 410±5 51 73 20 10 20 6

Technical Specification Of Tall Tubular Battery C20 Capacity

Cell Type Normal Voltage Capacity in AH at 27°C in 20 Hrs Rate Dimension Wt. (K.gs) (approx) Electrolyte Qty in Ltrs Per cell (approx) Charging Current (A)
Length (mm) Width (mm) Height (mm) With out Electrolyte (approx) With Electrolyte (approx) Initial Normal Equalizing
UBT 100 LMH 12 100 510±5 195±5 410±5 31 49 16 4.5 8 2.6
UBT 120 LMH 12 120 510±5 195±5 410±5 34 56 18 5.5 10 3.2
UBT 135 LMH 12 135 510±5 195±5 410±5 38 60 18 6.5 12 3.8
UBT 150 LMH 12 150 510±5 195±5 410±5 43 63 19 7.5 13.5 4.2
UBT 180 LMH 12 180 510±5 195±5 410±5 45 66 20 8 15 4.8
UBT 200 LMH 12 200 510±5 195±5 410±5 47 70 20 9.5 18 5.6
UBT 220 LMH 12 220 510±5 195±5 410±5 52 74 20 10.5 20 6.2
